| Operating Frequency Band(MHz) | 470~510 |
|---|---|
| Reception Sensitivity | -120dBm |
| Baud Rate | 2400bps~115200bps(Default:9600bps) |
| Transmission Distance | 3000 meters |
| Working Voltage | DC 8V-28V |
| Product Dimensions | 69.5*11.5*24mm(Includes Terminals) |

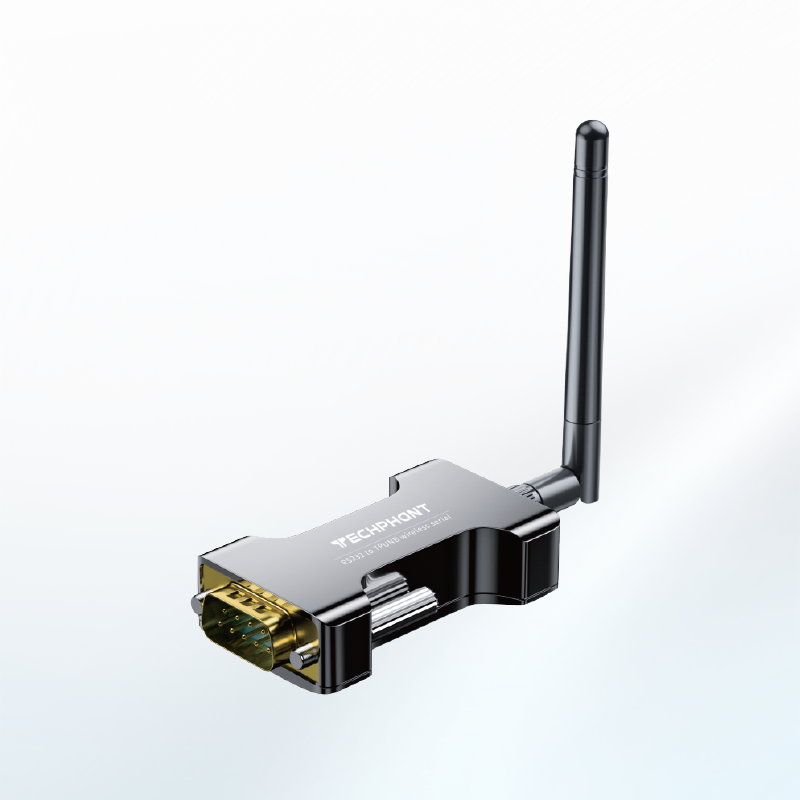

TP5603-D101
TP5603 – D101 is a compact wireless device. It operates in the 470 – 510 MHz band, with a reception sensitivity of – 120dBm. The baud rate ranges from 2400bps to 115200bps (default 9600bps), and it can transmit up to 2000 meters. It works on DC 9V – 28V power and measures 69.511.524mm (including terminals).
