Replace standard LoRa with Techphant TP1107: 76.8 kbps, 6 km point-to-point, 2 μA sleep current. Compact 17.7×15.8 mm module with deterministic scheduling, remote config, and OTA upgrades for industrial IoT.

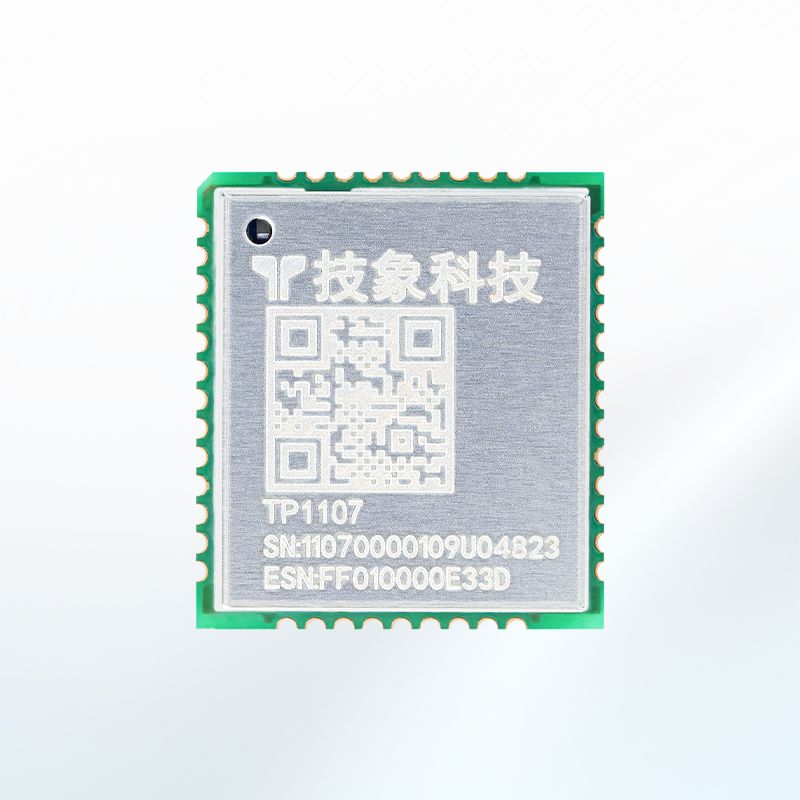

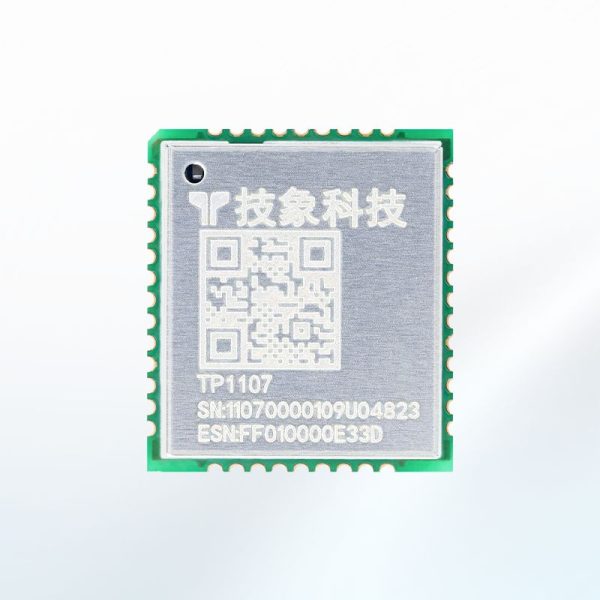

TP1107
| Parameter | Specification |
|---|---|
| Dimensions | 17.7 mm × 15.8 mm × 2.2 mm |
| Operating Frequency Band | 433 MHz / 470–510 MHz (Customizable) |
| Receive Sensitivity | –111 dBm @ 19.2 kbps |
| Modulation | S-FSK |
| Operating Bandwidth | < 200 kHz, single carrier |
| Air Interface Data Rate | 2.4 kbps (uplink) / 19.2 kbps (downlink); or 76.8 kbps (uplink) / 76.8 kbps (downlink) |
| Antenna Interface | LCC pads |
| Supply Voltage | 2.6 V ~ 3.6 V |
| Low-Power Mode Current | 2 μA |
| Wake-on-Air Mode Current | 18 μA |
| Point-to-Point Range | 6 km (Clear weather, open area, 3 dBm antenna gain, 2 m height) |
| Typical Interfaces | RF, Power, UART, GPIO, LED, Antenna |
| Network Topologies Supported | Star, Tree, Mesh |
| Key Features | Point-to-point, Retransmission mechanism, OTA upgrade, Security protection, Parameter saving, Remote configuration, RSSI signal detection |
